Product description:

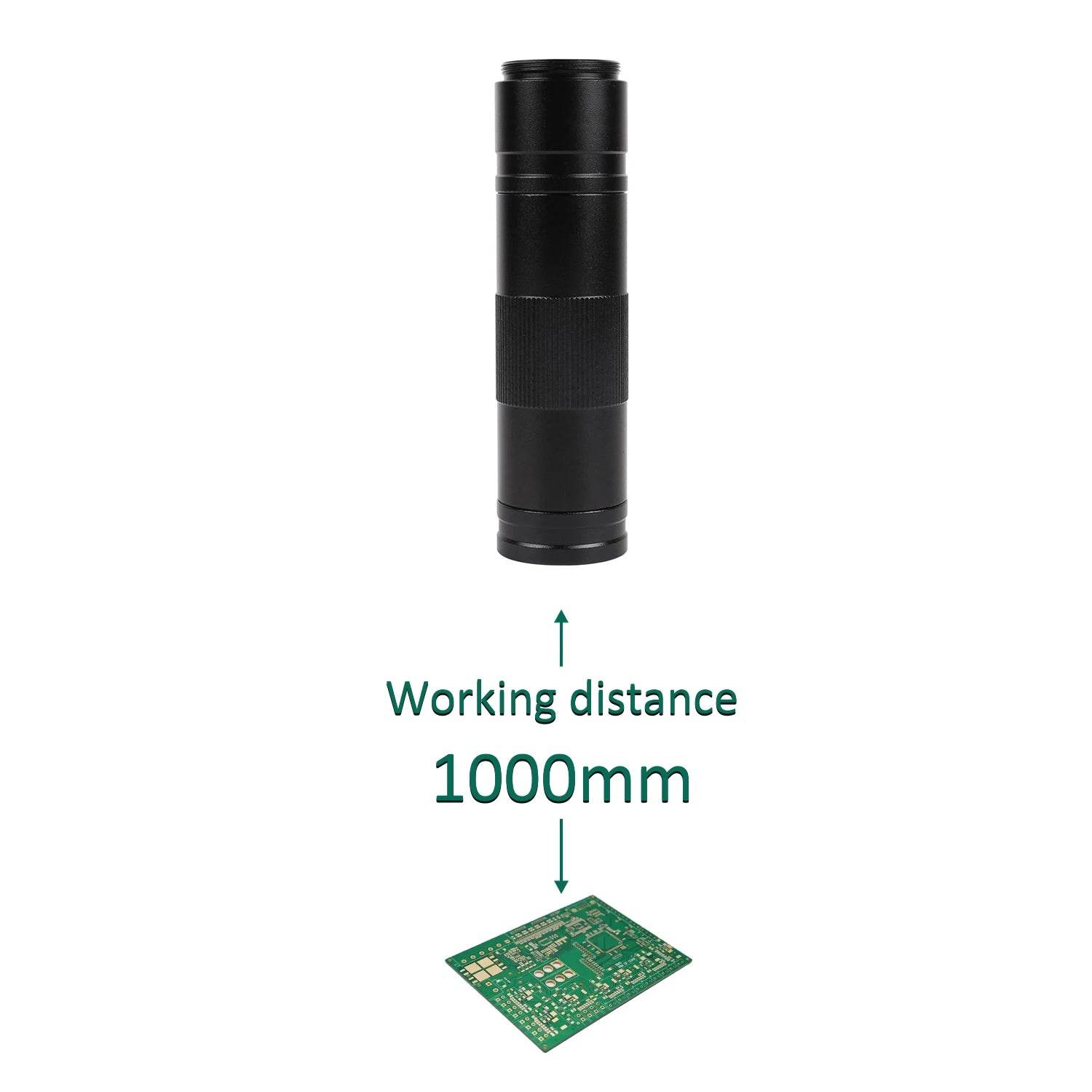

1X-150X Zoom C-mount Lens:

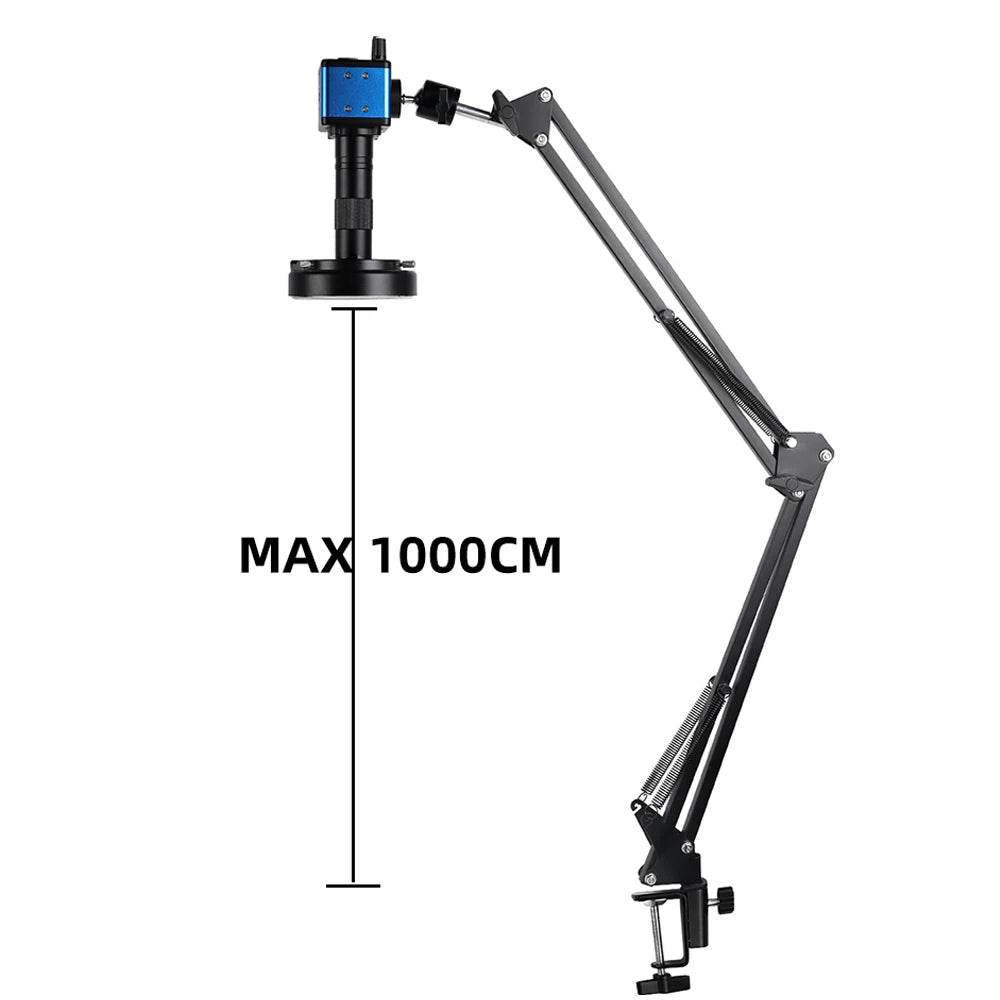

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

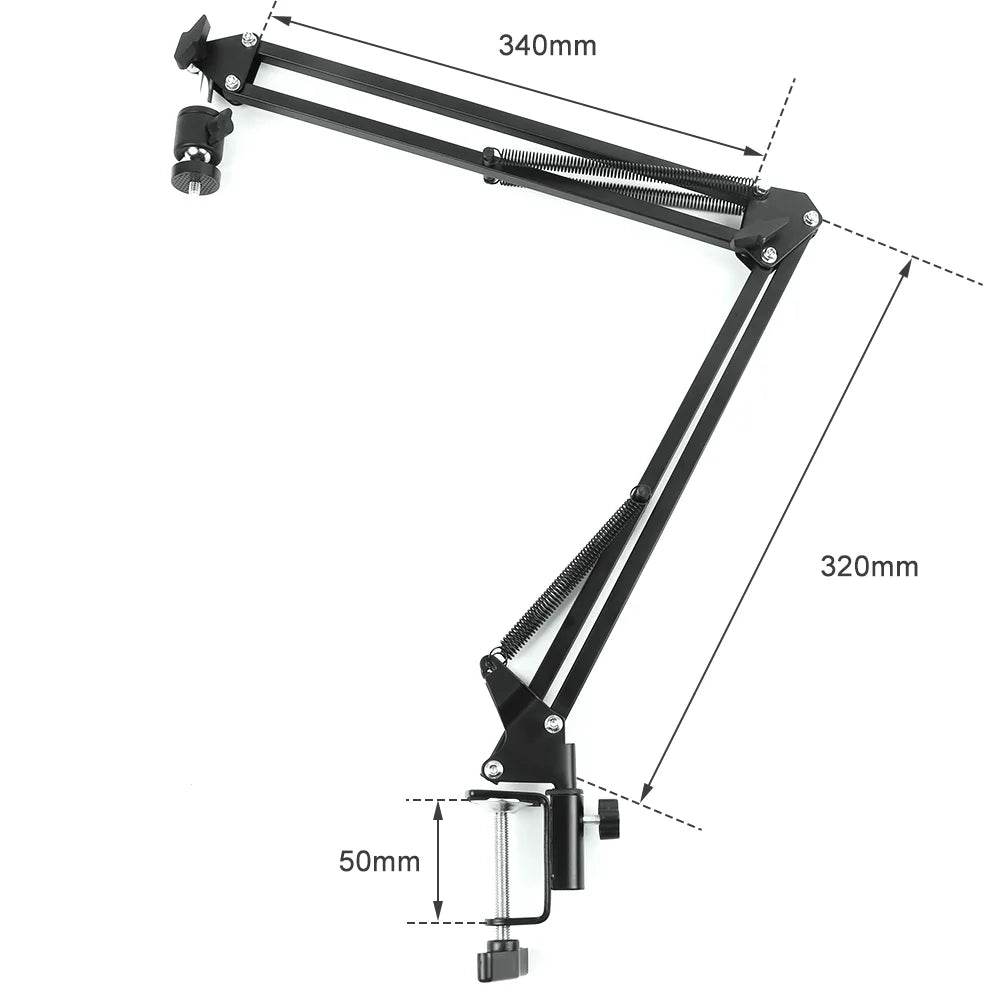

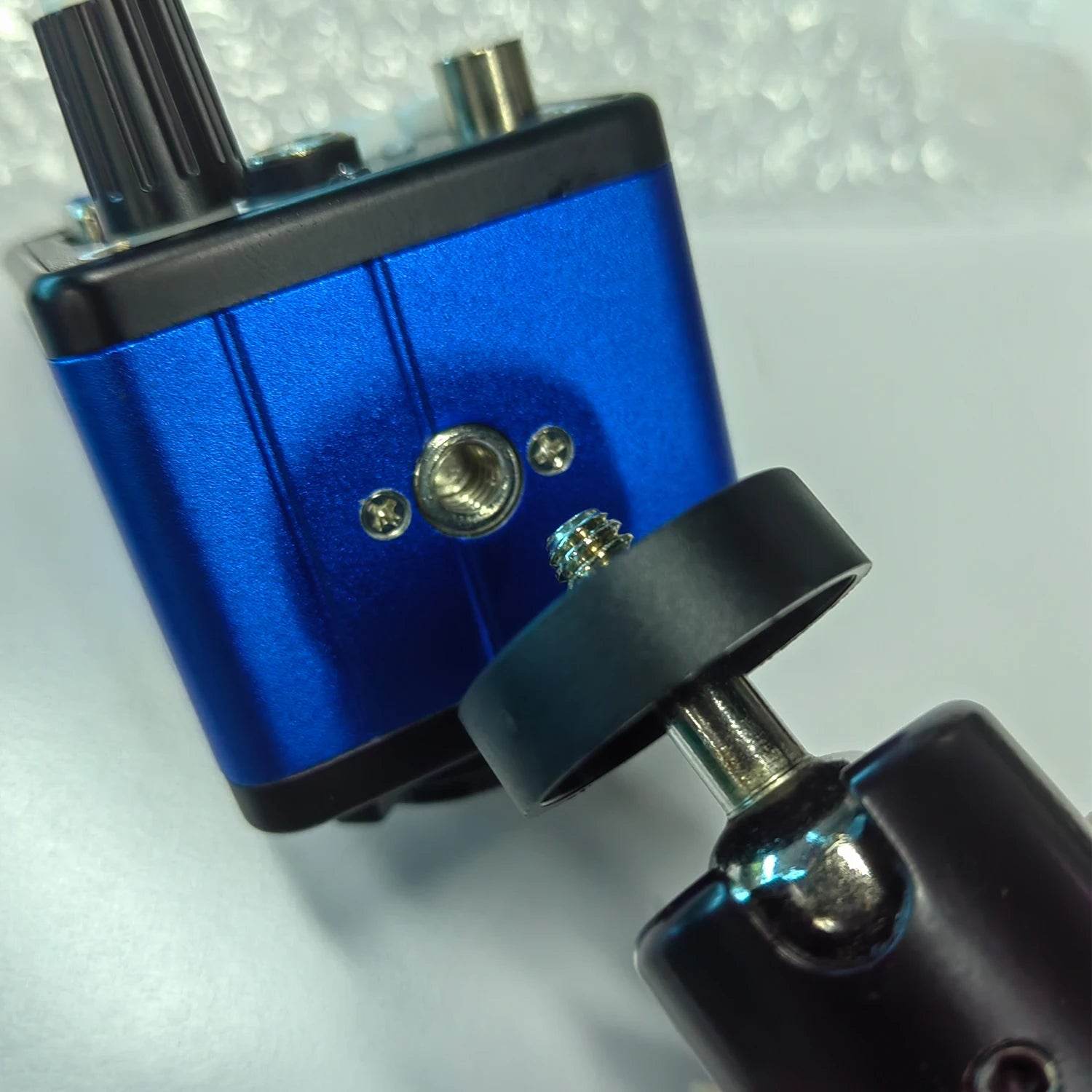

Adjustable Bracket ：

size: 340mm+320mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

13MP VGA CAMERA:

Feature:
Overall dimension: 70*50*50mm
Video Interface:VGA

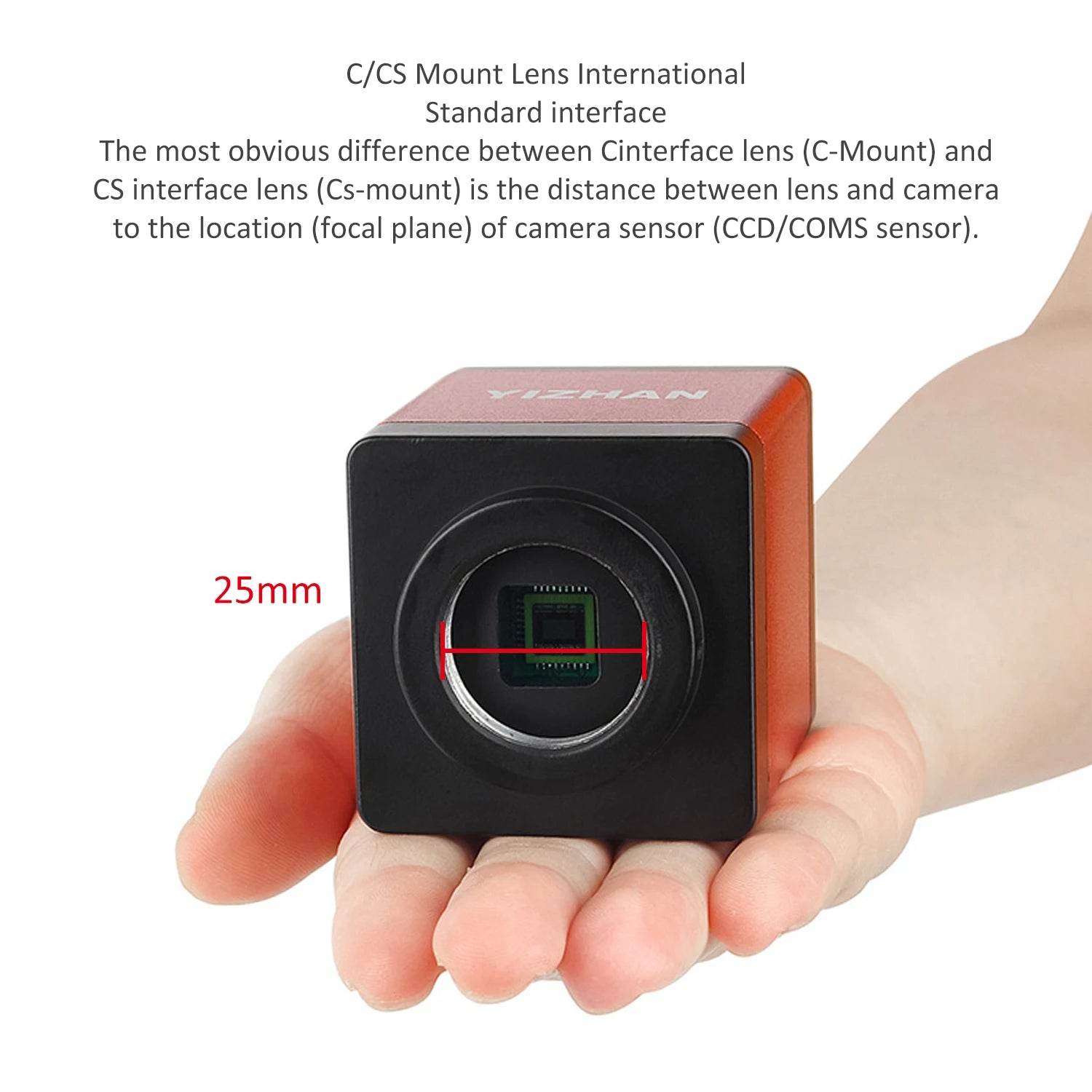

Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/2.7"
Pixel size:3.0um*3.0um
Pixel array: 1920*1080
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB

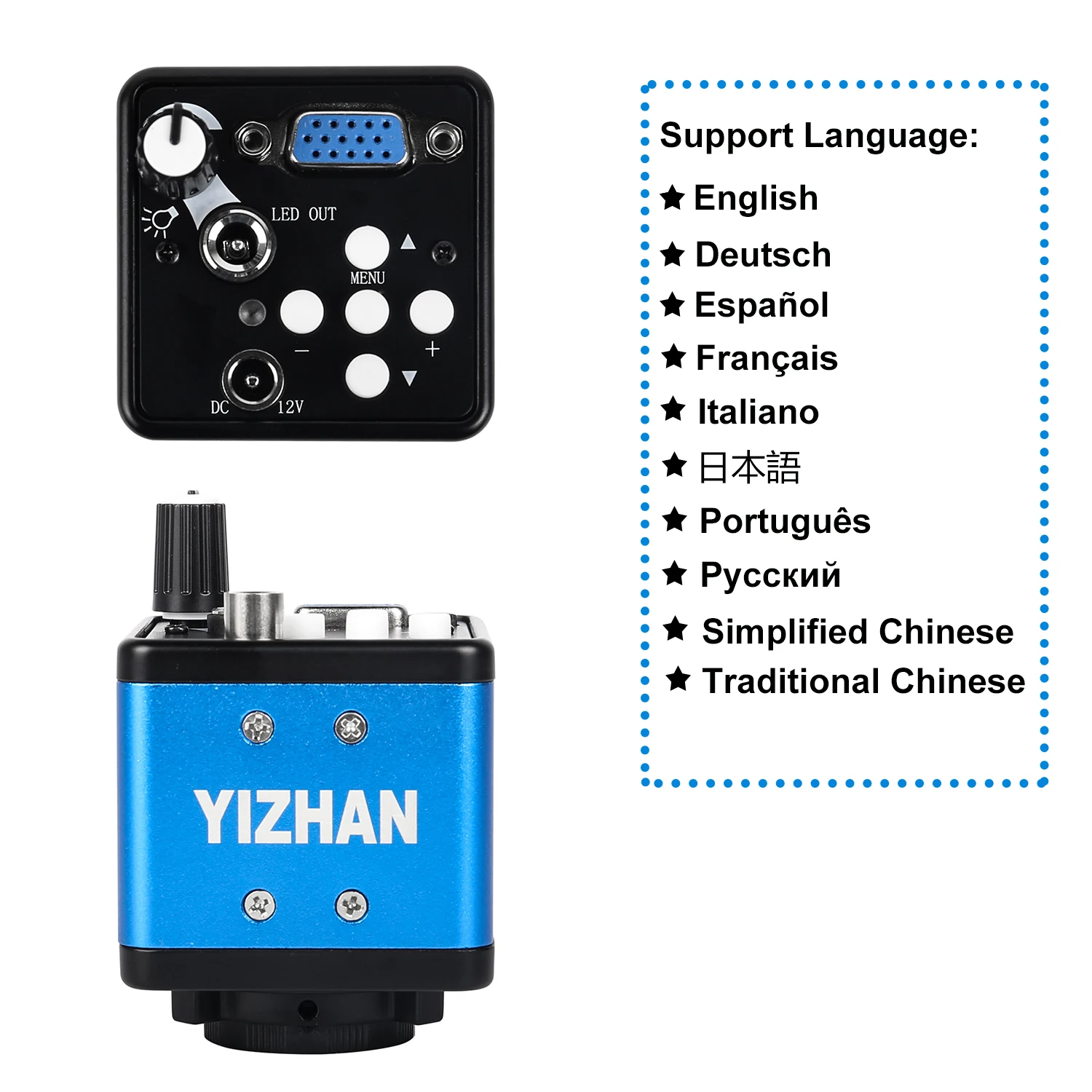

OSD language:English/German/French/Italian/Russian/Spanish/Portuguese/Japanese/Simplify Chinese/Traditional Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)

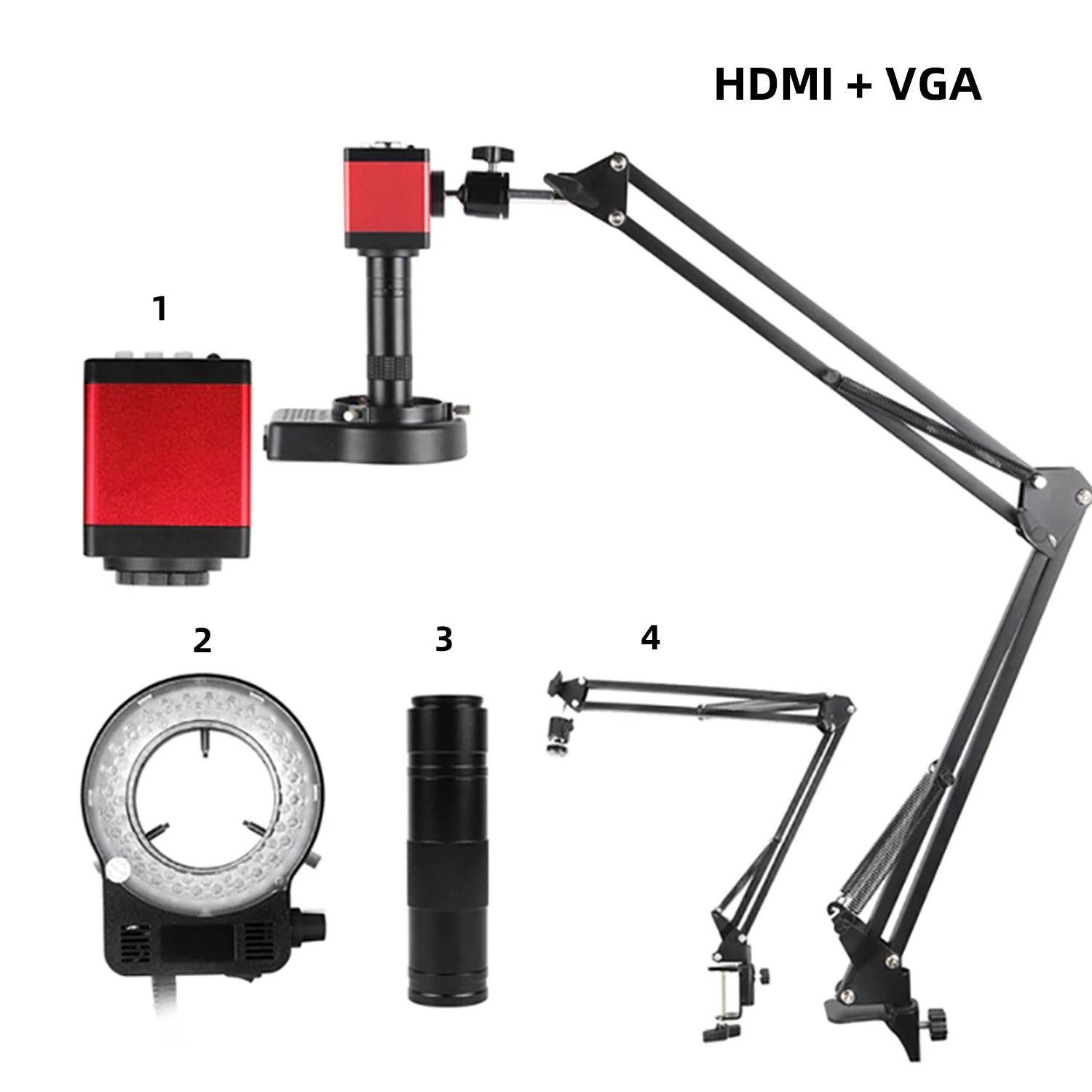

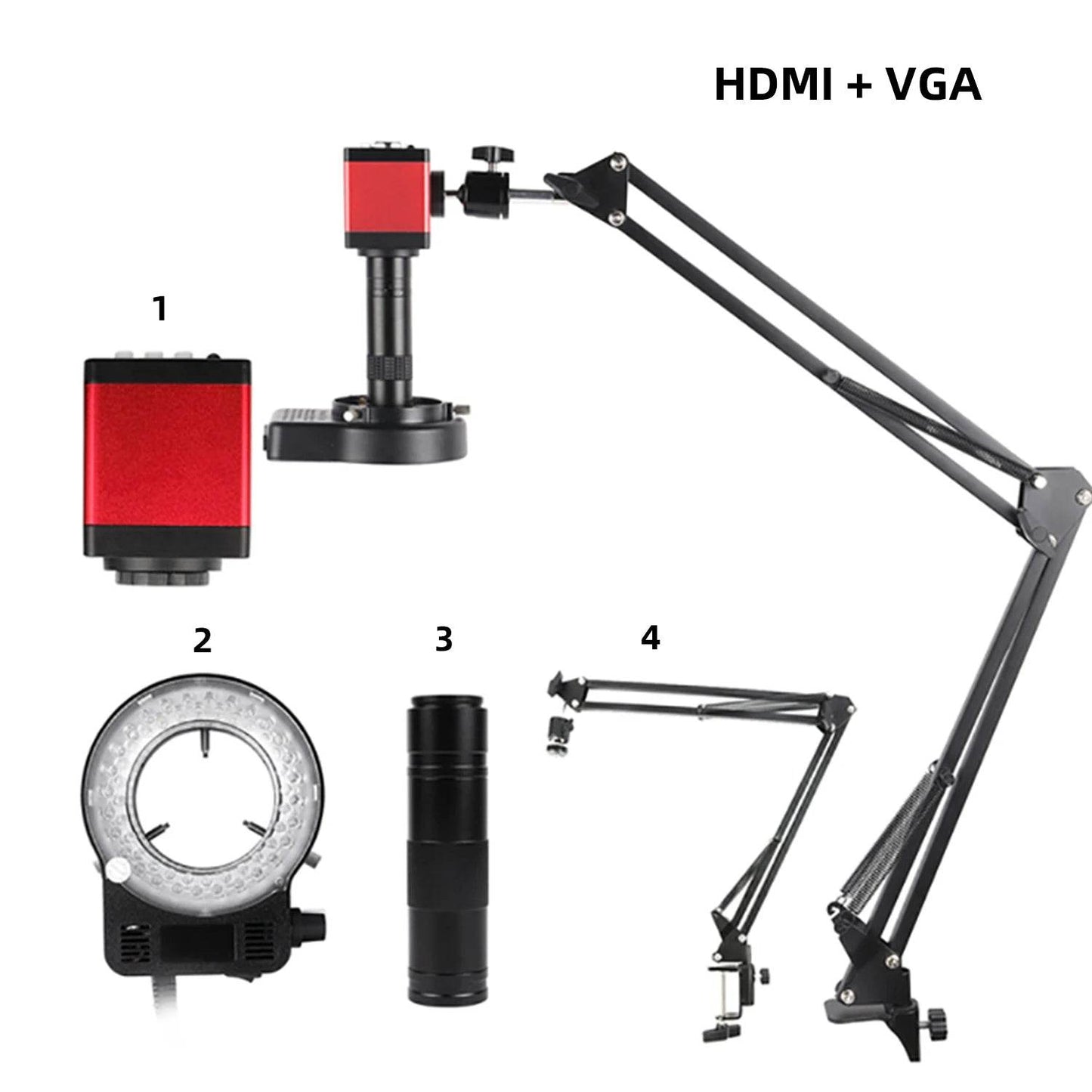

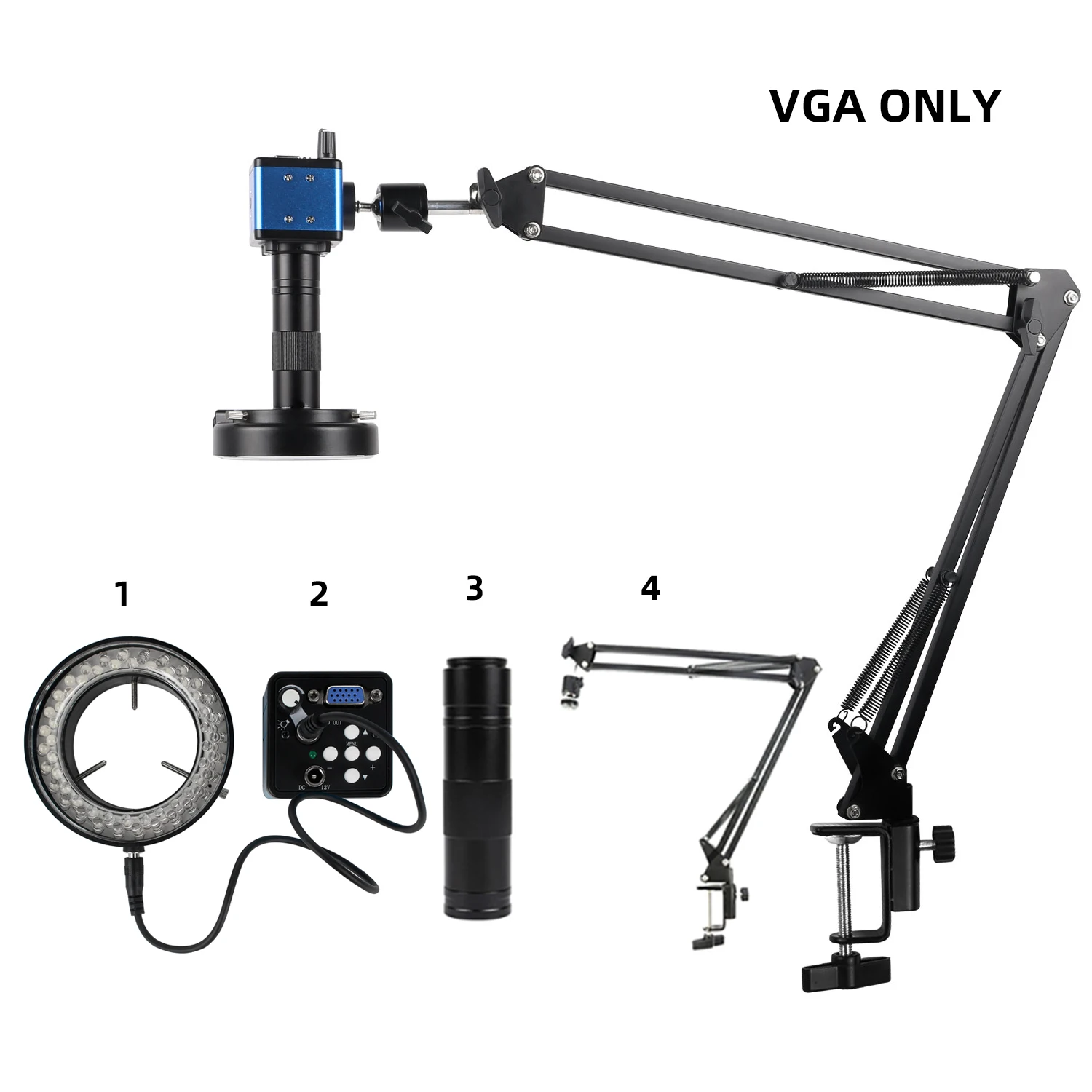

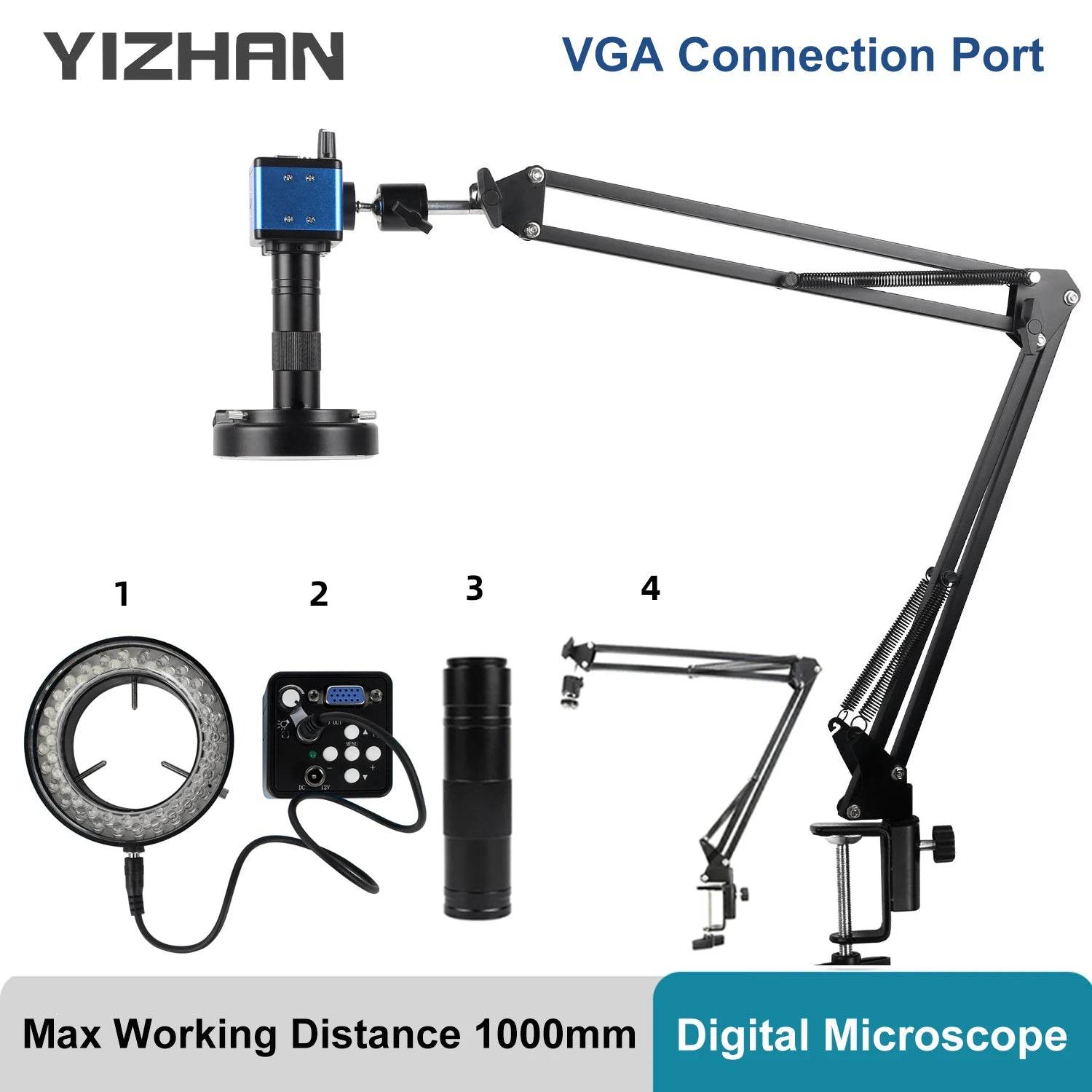

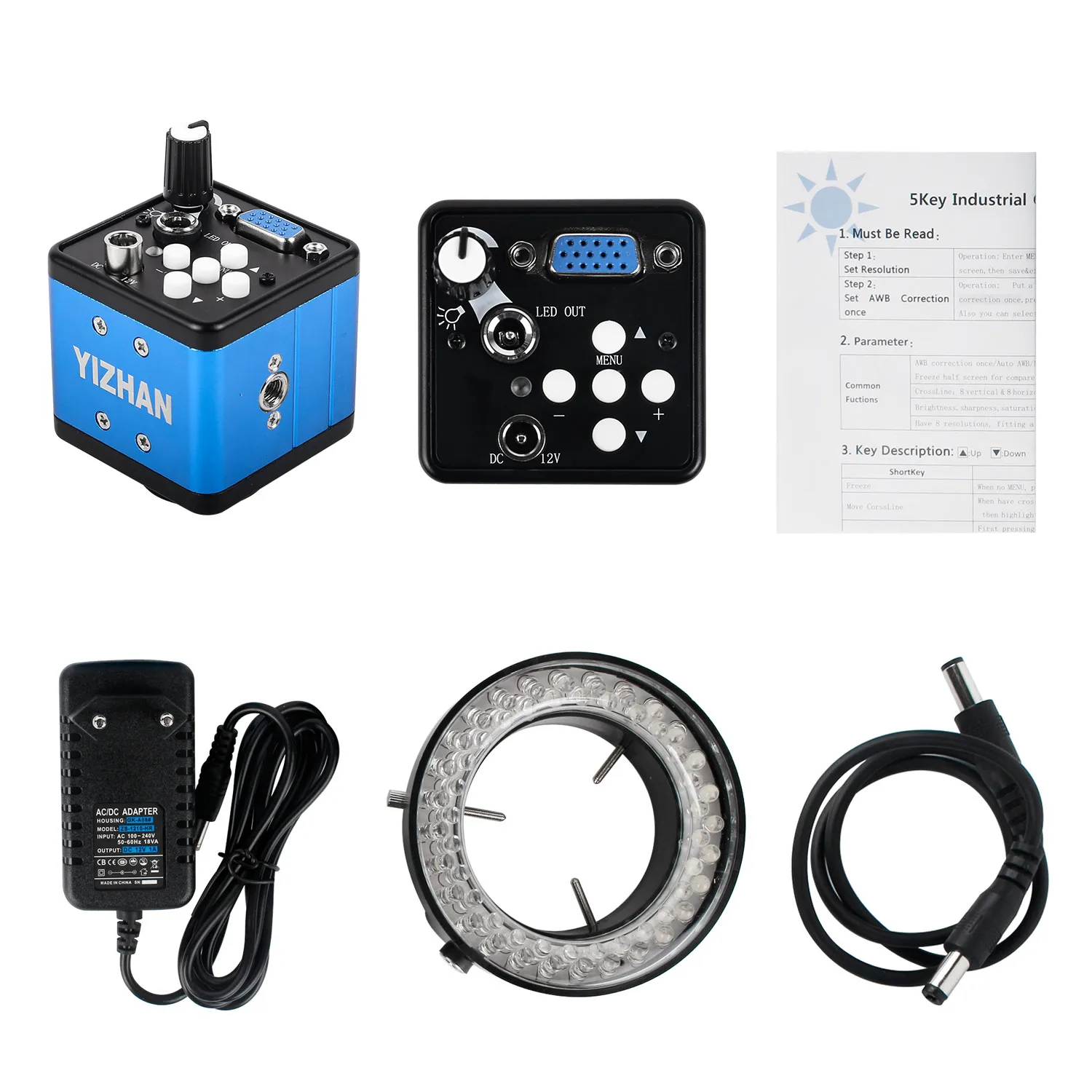

Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x LED ring lamp holder
1 x Link line
1 x Hard copy

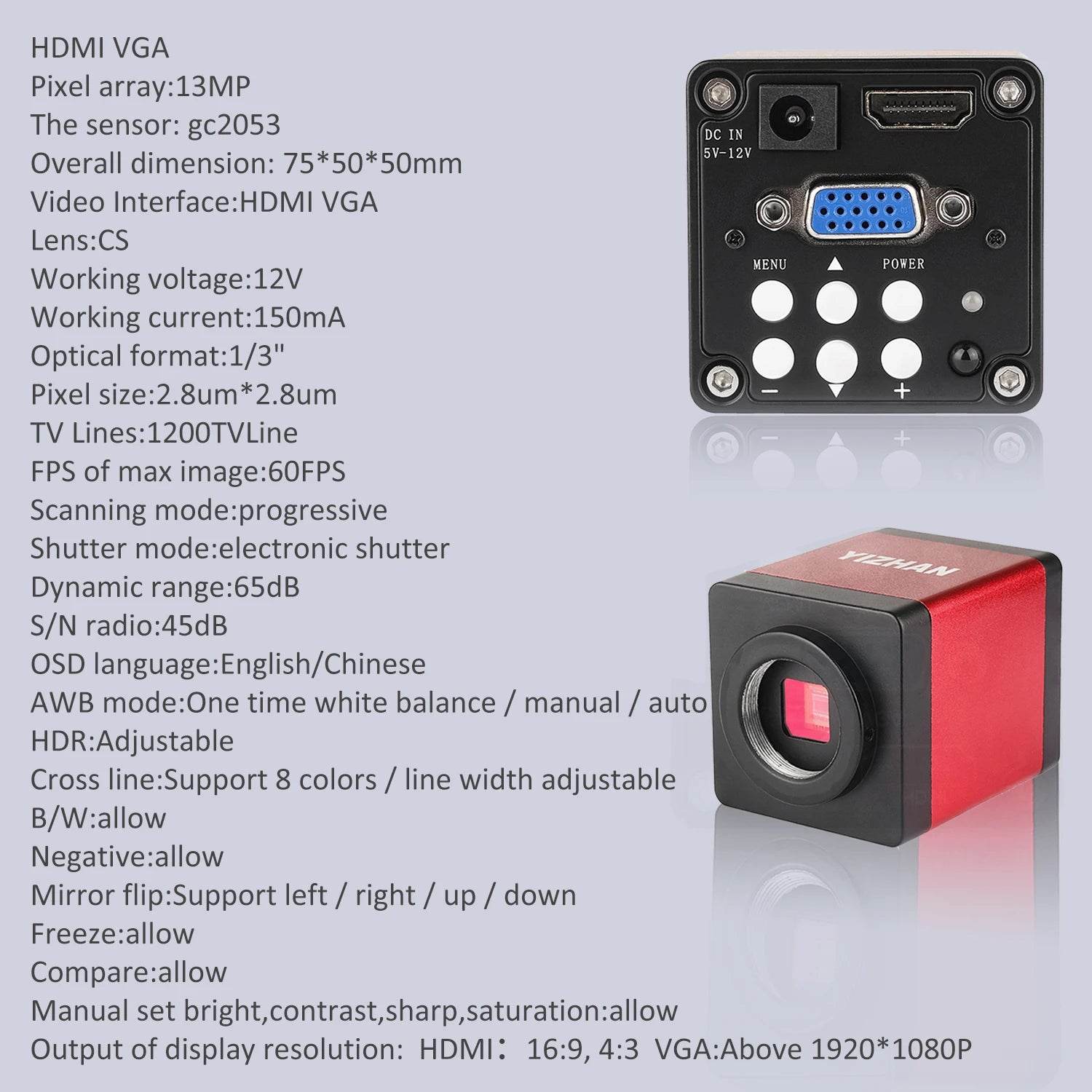

13MP HDMI VGA Camera

The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD Language:English/German/French/Italian/Russian/Spanish/Portuguese/Japanese/Simplify Chinese/Traditional Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

Package incluede
1 x 13MP Camera（HDMI VGA ）Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）

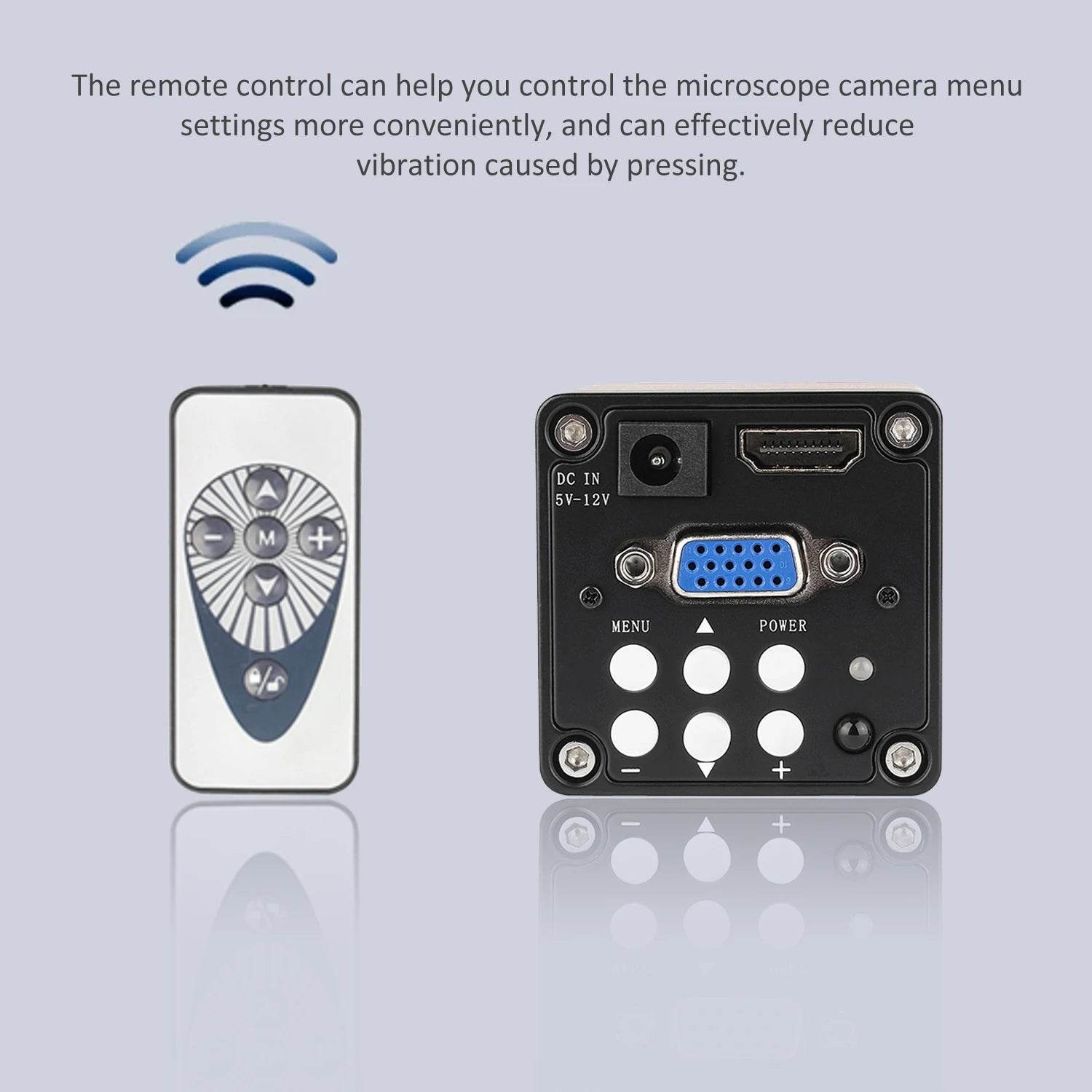

1 x Camera remote

Solutions to common problems
1. No image on display:
(1) Check if the power supply is normal.
(2) Check if the green power indicator is always on. If it flashes to indicate that the power supply is insufficient, please use the 12VDC power supply first.
(3) Press and hold "↓" first, then power on, output low resolution, and change to the resolution of the monitor when there is an image
2. The display has black edges:
(1) Adjust the display resolution
(2) Adjust the camera output resolution
3. The image has black spots:
(1) Check the camera and lens, confirm the dust location, and wipe with a professional lens cleaner or anhydrous alcohol (anhydrous ethanol).


Note
Please do not wipe the camera lens with your hands, it will cause scratches on the lens, which is not conducive to the use of the camera and affects the sharpness of the camera.
